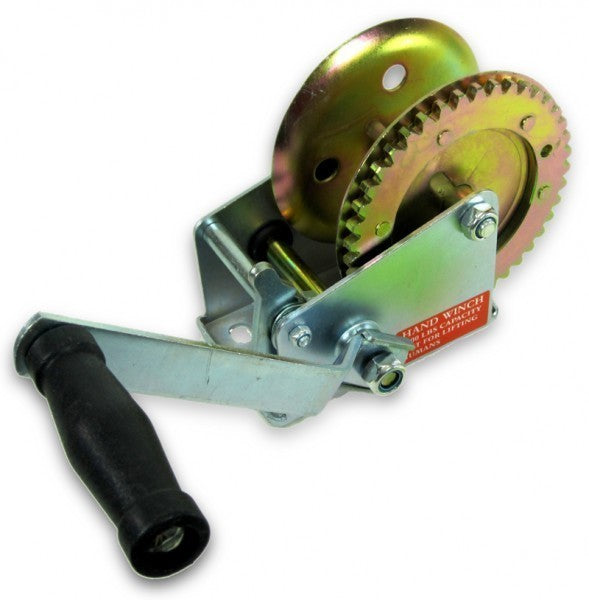

Trailer winch 636kg galvanized, cable winch set 7.5m steel cable, affordable & stable

Affordable complete set for trailers with winch and steel cable.

Wind data:

• Stable gear construction with reduction ratio 3:1 / one gear
• internally lubricated reel and gear rings
• the molded cranked lever is easy to turn
• Curved reinforcements in the frame provide additional stability
• made of galvanized steel
• Pulling force 636 kg
• Length 190 mm
• Width with crank 250 mm
• Width without crank 135 mm
• Height from mounting surface 160 mm
• Clear width of the drum 50 mm
• Drum diameter 140 mm
• Length of mounting surface 135 mm
• Width of mounting surface 90 mm

Data cable:

• Diameter 4.8 mm
• Length: 7.5 meters
• Breaking load: 1700 kg
• Material steel wire
• including galvanized snap shackle and fastening material

The rope is not yet assembled upon delivery.
