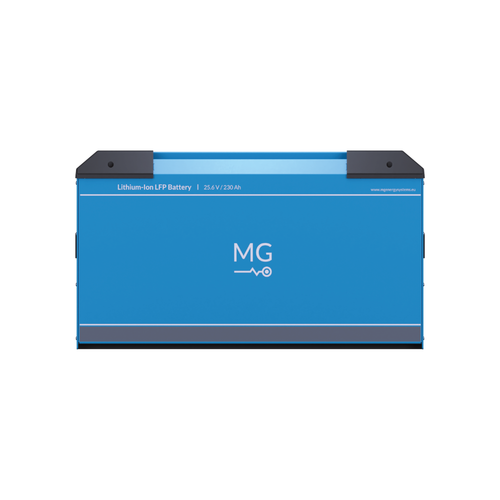

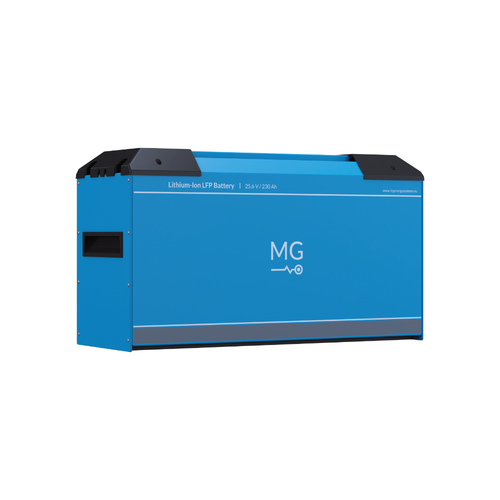

MG Battery LFP 25.6V 230Ah 5800Wh, Lithium-Ion Battery, High Cycle Life
Sold out
Regular price
€2.632,28
-0%
Unit price
/
Unavailable
MG Battery LFP 25.6V 230Ah 5800Wh, Lithium-Ion Battery, High Cycle Life is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
30 Tage kostenlose Rücksendung
Description
Description
MG LFP Battery Product Description
| Technical specifications | Details |
|---|---|
| Model | MG LFP battery 25.6V/ 230Ah/ 5800Wh |
| technology | Lithium-ion third generation LiFePo4 |
| Cell configuration | 8S1P |
| Nominal voltage | 25.6 V |
| Nominal capacity | 230 Ah |
| Nominal energy | 5.8 kWh |
| Cycle life DOD 80% | > 4000 |
| Specific energy | 143 Wh/kg |
| Weight | 41 kg |
| discharge | Final discharge voltage: 24.0 V Recommended discharge current: < 115 A (< 0.5C) Continuous discharge current: 230 A (1.0 C) Maximum discharge current: 345 A (1.5 C) Fuses: 300A, fuse inside |
| charge | Charging voltage: 28.2 V Recommended charging current: < 115 A (< 0.5C) Continuous charging current: 230 A (1.0 C) Maximum charging current (10 s): 345 A (1.5 C) |
| configuration | Series configuration: Up to 6 modules Parallel configuration: Up to 96 modules |
| Environment | Operating temperature charge: 0 to +45°C Operating temperature discharge: -20 to +55°C Recommended operating temperature: 20 to +30°C Recommended storage temperature: 10 to +35°C Humidity (non-condensing): = 95% |
| Mechanically | Power connections: M8 bolt, 20 Nm IP protection class: IP30 Cooling: air, convection |
| Dimensions (lxhxw) | 517 x 294 x 193 mm |
| Security | Battery Management System (BMS): Integrated Slave BMS Balancing: Passiv Compatible BMS Master Controller: MG Master LV, MG Master HV Communication: CAN bus, RJ45 or M12 connection |
| Standards | EMC: Emission: EN-IEC 61000-6-3:2007/A1:2011/C11:2012 EMC: Immunity: EN-IEC 61000-6-1:2007 Low Voltage Directive: EN 60335-1:2012/AC:2014 |
Safety instructions:
Product features
Product features
SKU
112158-1200
