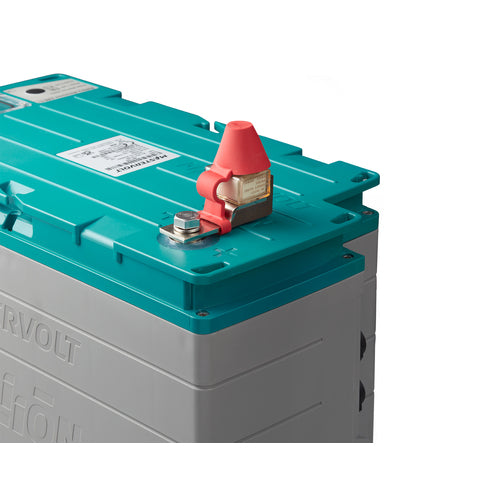

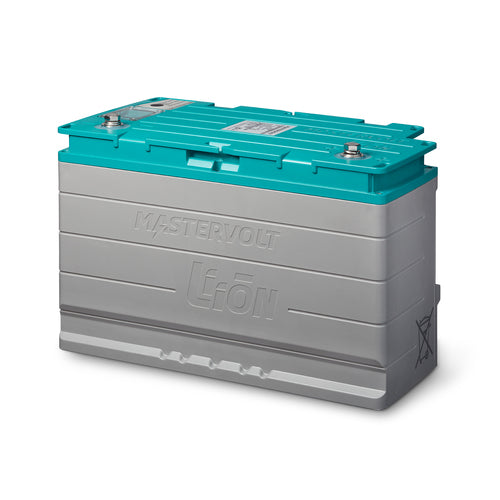

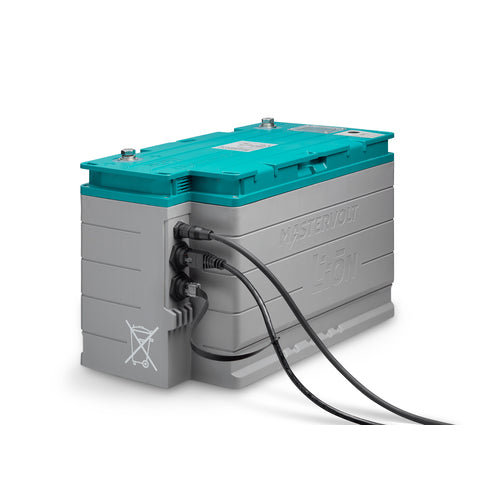

Mastervolt Battery High-performance lithium-ion battery, LiFePO4, BMS protected, MLI Ultra 24/1250 for extremely fast charging and long service life

Self-balancing algorithm and compatibility

The MLI series delivers extreme lithium-ion performance even under the harshest conditions, such as high charge and discharge currents, wet environments, and mechanical shock or vibration. This is achieved by combining our best-in-class lithium iron phosphate (LiFePO4) cells with a proprietary battery management system (BMS) in a rugged, waterproof housing.

The sophisticated Mastervolt BMS ensures optimal use of every single cell. Integrated battery monitoring provides you with accurate and up-to-date information about your battery's condition. Integrated NMEA 2000, CZone, and MasterBus communication enables complete system integration to ensure the best possible charge while maximizing your battery's lifespan.

Self-learning balancing algorithm

MLI Ultra batteries are equipped with a self-learning balancing algorithm that predicts and proactively balances the behavior of each individual battery cell, resulting in a faster and more efficient charging cycle. This self-learning system eliminates unnecessary stress on the cells, resulting in an even longer battery life.

Performance in icy cold

The MLI Ultra 1250 features an integrated thermal pad and sophisticated low-temperature control to ensure maximum charging performance in sub-zero temperatures. In cold weather, it uses the connected charger to power the heat pad and keep the battery cell temperature above freezing. This ensures the fastest possible charging and full performance even on the coldest days.

Integrated battery switch

The integrated battery safety switch disconnects the battery cells if an abnormality is detected. This is based on intelligent algorithms that analyze all the details of the battery's condition, such as charging current, temperature, cell details, and more. Where other integrated switches have current limits, the MLI Ultra 1250 delivers continuous power up to 200 amps.

Plug-and-play through automatic configuration

Installing a lithium-ion battery has never been easier. Connect the MLI Ultra 1250 to any supported Mastervolt charger and the communication cable, and the charger will automatically configure itself to fully match the battery. This ensures a smooth and worry-free charging experience without the need for configuration tools.

Main features

• Extremely powerful high-performance lithium-ion batteries.
• BMS and LiFePO4 chemistry according to the highest safety standards.
• Drop-in replacement for Group 31 and Group 49 (85-90 Ah) batteries.
• More than three times the lifespan of conventional batteries.
• Saves up to 70% space and weight.
• High charge/discharge rate up to 2 C.
• Fast charging within 60 minutes.
• Series connection up to 48V possible.
• Integrated battery switch.
• Integrated heating pad with control.
• Integrated battery monitoring (voltage, current, charge level, remaining time).
• MasterBus communication with any Mastervolt battery charger or Smart Remote.
• CZone and NMEA2000 compatible.
• Completely waterproof.
• UN 38.3, CE, E-Mark and FCC certified.
• Complies with UL1973 and RVIA standards, TEI listed.

*Due to thermal protection, this high discharge current can be used for 3 minutes at or above an ambient temperature of 25°C [77°F].
