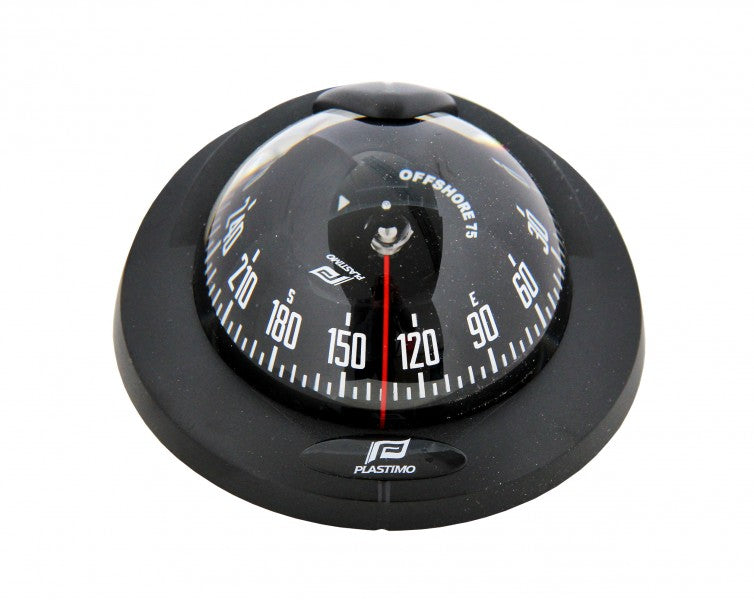

Offshore compass flush mount LED illuminated, navigation instrument black, vibration absorber

• Suitable for motorboats from 5 to 8 meters
• Conical rose with 5° graduations
• Apparent diameter of the rose: 70 mm
• Course repetition every 30°
• Suitable for all areas worldwide (horizontal mounting model only)
• For horizontal mounting, also available as a model for vertical mounting (mounting angle 20°-90°, travel area selectable)
• Resistance to vibrations through "Vibration Absorber", specially damped rose system
• 1 tax mark
• Model with LED lighting
• ISO 613
• Case color: Black
• Color Rose: Black

Absolutely waterproof:

• Rim and bowl are made of one piece
• Viton® membrane with high expansion capacity for volume fluctuations: the membrane compensates for changes in the liquid volume (due to temperature variations or atmospheric pressure) and thus prevents the formation of air bubbles
• Lighting integrated into the compass casing
• Countersunk head screws

Tax line:

• Red for direct reading at a glance

Material:

• All compass components are UV-resistant
• Scratch-resistant compass ball
• Resistance to vibrations, tested by LCIE, No. 30 559 010. "Vibration Absorber" system: minimal contact surface between the pivot and the sapphire bearing
