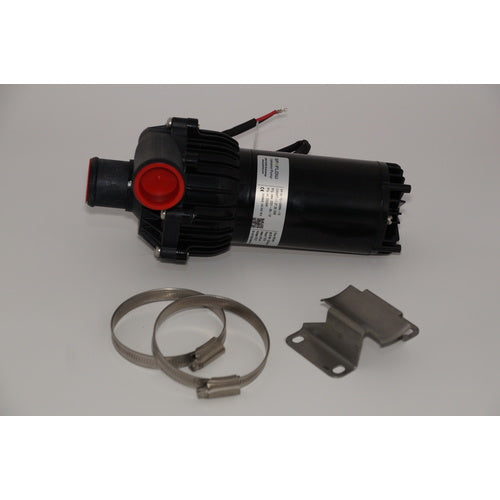

Johnson pump 12V stainless steel shaft 38 mm connection, water pump, continuous operation capable IP67

Johnson CM90

Technical data:

• Pump housing: PPA, thermoplastic
• Impeller: PA12, thermoplastic
• Shaft: stainless steel
• Motor: 12/24 V DC Protected according to IP67
• Permanent magnet, ball bearing motor, designed for continuous operation
• Pumping medium: Water/glycol mixture, max. 60% glycol, pure fresh water
• Liquid temperature: Min -40 °C Max +100 °C
• System pressure: Max. 2.5 bar
• Hose connection: Ø 20 mm (¾') or Ø 38 mm (1¼')
• Dry run: Max 30 minutes
• Power consumption: Max. 125W

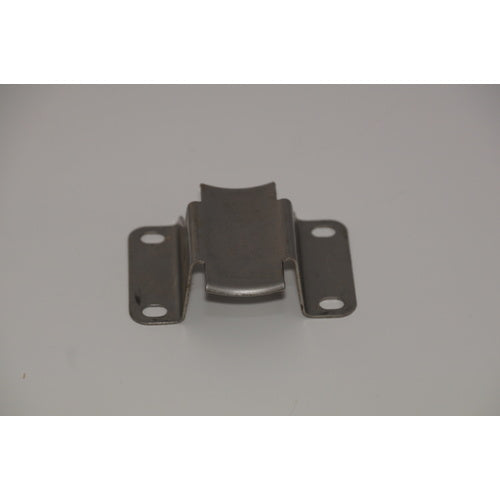

• Mounting: Universal bracket, flat mounting (Included)
• Length: 253 mm
• Width: 120 mm
• Height: 149.5 mm
• Weight: 3.9 kg (8.6 lbs)
