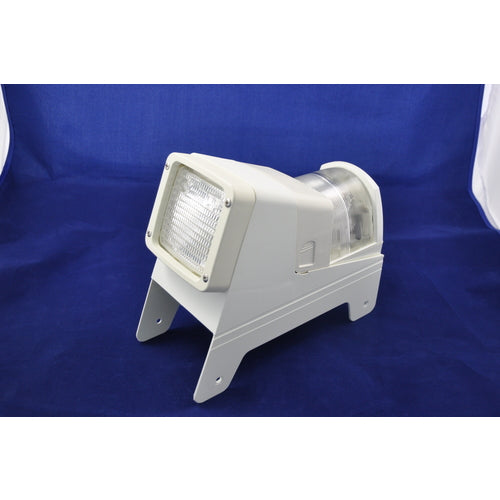

Hella Top-Deck Combination White, Deck Floodlight Top Lamp, Freeform Reflector Technology for Boats up to 20 m

Hella marine - Series 8504 top-deck combination

Deck spotlight and masthead light combined in a robust housing. Approved for vessels up to 20 m in length.

• 2 NM top plate 2LT 00??????????-301
• Hella marine freeform reflector technology
• Flexible mounting brackets allow quick and easy installation on any mast profile
• Uniform and large-area illumination
• The lens of the deck spotlight is protected against the ingress of dust and moisture
• All metal parts made of stainless steel 316

Material description

Impact-resistant, UV-resistant and dimensionally stable plastic

Light bulbs

12 V / 10 W BAY15d and 12 V / 55 W H3 included

installation

Lantern: Combined screw-flat plug connections 6.3 mm
Deck spotlights: 6.3 mm flat plug connections

Degree of protection

IPX4

Maximum performance

Deck spotlight 12 V / 55 W or 24 V / 70 W

Note: Not suitable for 100W incandescent bulbs.
