Hella LED navigation light deck mount, starboard and port lamp, energy-efficient and durable, multi-voltage 12/24V, IP67, internationally approved

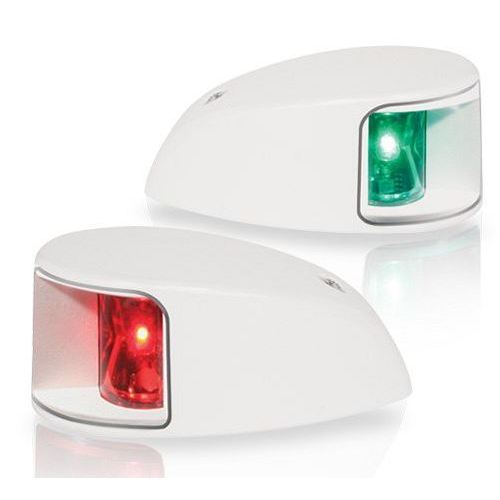

Hella marine - NaviLED starboard and port lamp 2 nm for deck mounting

Compact LED navigation lights for deck mounting – elegant, energy-efficient, and durable.

Minimal power consumption at full range

NaviLEDs require less than 10% of the power of a conventional incandescent navigation light to achieve the same range. The two side lights (starboard and port) consume less than 2 watts combined.

No bulbs. No maintenance intervals. Extremely durable.

LEDs are robust semiconductor components that have no filaments that can break, so the lanterns are completely shockproof and insensitive to vibrations.

MultivoltTM 12/24V DC

State-of-the-art circuits, water-protected inside the lamp, guarantee consistent light output between 9 and 32 volts and protect the light module from voltage spikes and reverse polarity.

Visibility and safety at sea

Hella marine precision optics provide accurate cut-off points and improve visibility compared to filament navigation lights.

Pre-wiring

The pre-wiring of all Hella marine LED navigation lights enables quick, safe and waterproof installation.

Internationally approved

Approved according to the requirements of IMO COL REG, USCG, ABYC A-16 and RINA.

Material description

Lens made of impact-resistant, UV-resistant plastic. Shock-resistant housing.

scope

2 nautical miles

Cable

Pre-wired with 500 mm connection cable

Operating voltage

Multivolt 12/24V DC

Voltage protection

Voltage peaks up to +500V. Reverse polarity up to -700V

Power consumption

Starboard and port together < 2W

Protection class

IP 67 – Hermetically sealed

Weight

75 g (including cable)

Approvals

IMO Col Reg 72, RINA, USCG, ABYC A-16, Maritime NZ
