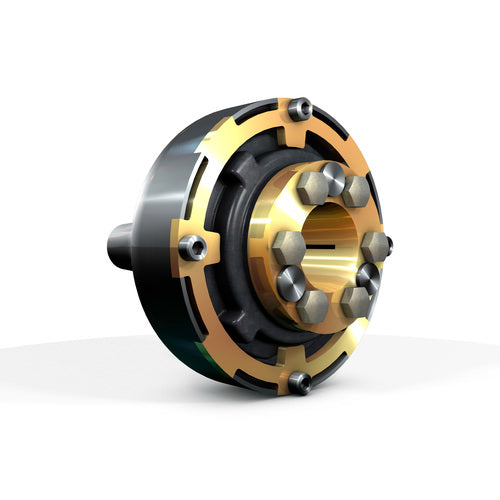

Centa flexible coupling CF-M-127-3.3 without hub, highly flexible connecting coupling, backlash-free and vibration-damping, easy installation
Centa flexible coupling CF-M-127-3.3 without hub, highly flexible connecting coupling, backlash-free and vibration-damping, easy installation is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Centa flexible coupling - Type M
Highly flexible coupling for connecting the gearbox and propeller shaft. For applications with limited installation space.
Backlash-free transmission of torque and propeller thrust via a highly elastic rubber element. Specially developed to reduce noise and vibration in compact spaces. Dampens torsional vibrations and shocks, interrupts structure-borne noise, and compensates for axial, radial, and angular misalignments. Furthermore, it offers a high degree of electrical insulation.
Easily installed using a clamping hub. Delivered ready for installation with integrated anti-rotation protection. Further handling, maintenance, and cost advantages are achieved by eliminating the need for additional components such as spacers.
| Torque range | Elastic material | Temperature range |
|---|---|---|
| commercial 0.175 to 0.35 kNm | NR | -45° to +80°C |
| pleasure 0.25 to 0.5 kNm |
AREAS OF APPLICATION
- Between engine and transmission
- Between gearbox and propeller shaft
- Between water jet
- Between Z-drive etc.
Safety instructions:
