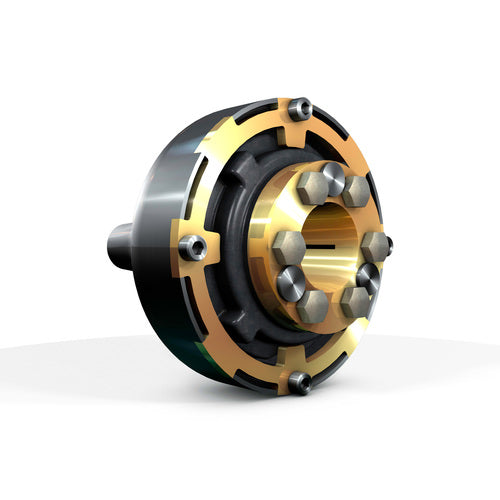

Centa flexible coupling CF-M-127-3.2 without hub, highly flexible coupling for reducing noise and vibrations, easy installation with clamping hub
Centa flexible coupling CF-M-127-3.2 without hub, highly flexible coupling for reducing noise and vibrations, easy installation with clamping hub is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Centa flexible coupling - Type M
Highly flexible coupling for connecting the gearbox and propeller shaft. For applications with limited installation space.
Backlash-free transmission of torque and propeller thrust via a highly elastic rubber element. Specially developed to reduce noise and vibration in compact spaces. Dampens torsional vibrations and shocks, interrupts structure-borne noise, and compensates for axial, radial, and angular misalignments. Furthermore, it offers a high degree of electrical insulation.
Easily installed using a clamping hub. Delivered ready for installation with integrated anti-rotation protection. Further handling, maintenance, and cost advantages are achieved by eliminating the need for additional components such as spacers.
| Torque range | Elastic material | Temperature range |
|---|---|---|
| commercial 0.175 to 0.35 kNm | NR | -45° to +80°C |
| pleasure 0.25 to 0.5 kNm |
AREAS OF APPLICATION
- Between engine and transmission
- Between gearbox and propeller shaft
- Between water jet
- Between Z-drive etc.
