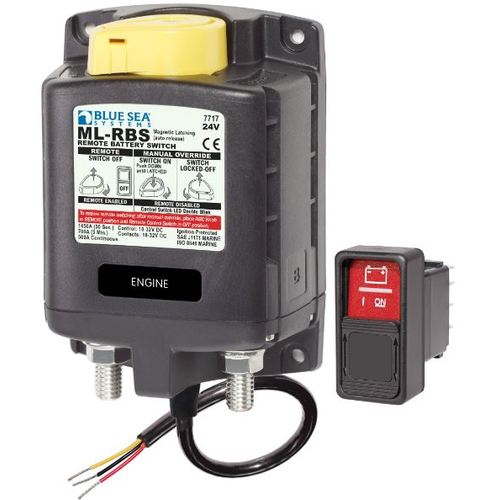

Blue Sea Battery Switch 500A Magnetic Lock, Remote Control Switch, High Current Under Load

The 500A magnetic interlock switch allows high current switching under load, manually or from remote locations.

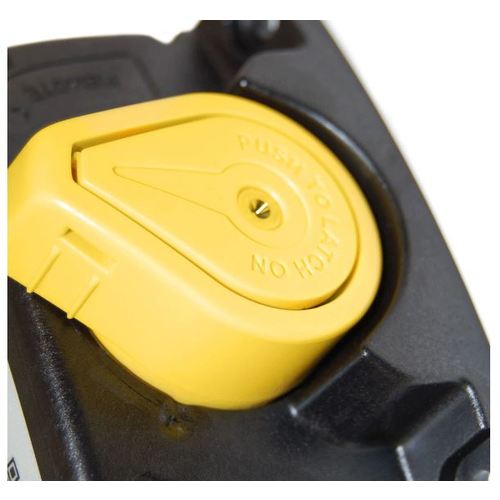

• The manual override button provides an additional level of security, allowing control with or without power and offering the option to lock out during maintenance.
• LED output for remote indication of switching status – requires optional LED.
• 3/8'-16 tinned copper studs for maximum conductivity and corrosion resistance.
• 7/8' (22 mm) bolt length for multiple cable connections.
• Labeling recesses for circuit identification.
• Silver alloy contacts offer high reliability when switching live loads.

ML Series automatic tripping battery remote switch with SPST circuit. Offers 500A switching and features of current ML battery remote switches, but can be controlled with SPST or SPDT switches for applications where a normally open relay is desired.
