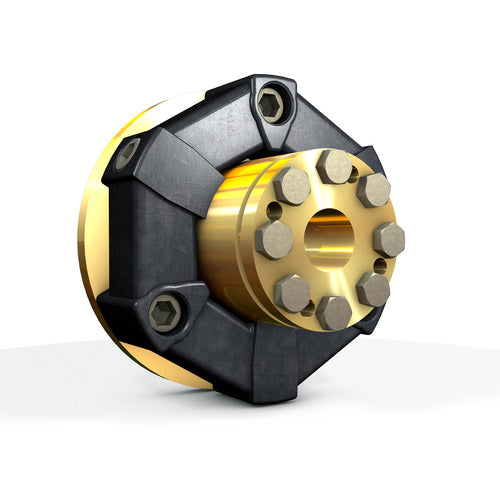

Centa flexible coupling - Type AM
Highly flexible coupling for connecting the gearbox and propeller shaft. For maximum comfort on board.
Backlash-free transmission of torque and propeller thrust via a highly elastic rubber element with a thrust bearing. Specially developed to reduce noise and vibration. Dampens torsional vibrations and shocks, interrupts structure-borne noise, and compensates for moderate axial, radial, and angular misalignments. Furthermore, it offers a high degree of electrical insulation. Available in a wide standard range for engine power outputs up to several hundred kW.
Easily installed using a clamping hub. Delivered ready for installation with integrated anti-rotation device.
| Torque range | commercial | pleasure |
|---|---|---|
| 0.12 to 8 kNm | 0.175 to 10 kNm | |
| Elastic material | NR | |
| Temperature range | -45° to +80°C |
AREAS OF APPLICATION
- Between engine and transmission
- Between gearbox and propeller shaft
- Between water jet
- Between Z-drive etc.
Safety instructions:
