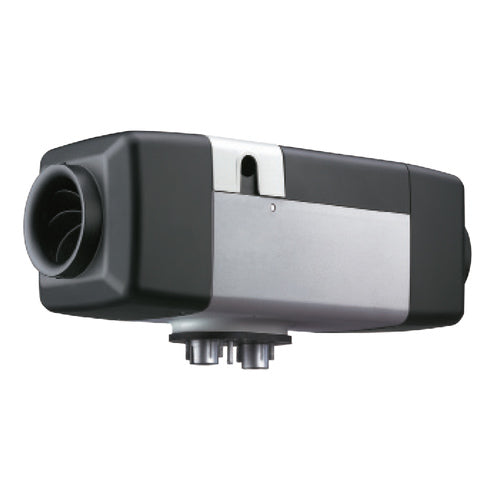

Webasto Air Top Evo 55 heater, 5.5 kW marine diesel heater, energy-saving and quiet, 12V

Webasto - Air Top Evo 55 – for extreme operating conditions

Extremely powerful, compact, and quiet, this heater ensures a comfortable climate on larger yachts even in the harshest conditions and meets the highest demands. It can be upgraded with the new multi-mode control panel, offering additional operating modes to meet your specific heating needs. For increased heat requirements, up to two Air Top heaters can be combined into one system (up to 11 kW). The entire system can be operated via a central user interface.

The advantages of the Air Top Evo 55:

• 5.5 kW heating output
• Very low power consumption thanks to new intelligent fan control
• New flame detection using exhaust gas temperature sensor
• Automatic cold start for quick heating
• Improved air intake silencer
• Vibration damper for fuel line
• Compatible with MultiControl control element
• Very quiet operation thanks to lower fan speed and quiet dosing pump (DP42)

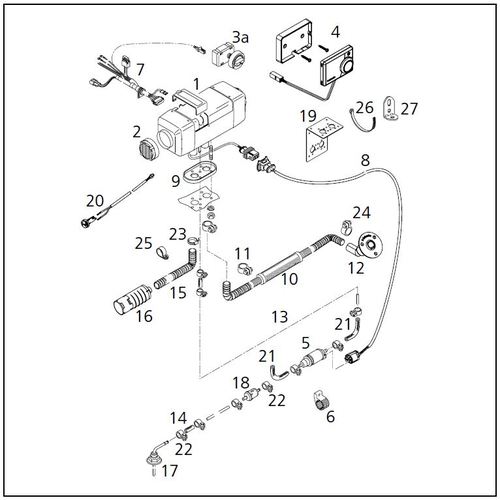

Scope of delivery

• Part 1 1 Heater 12 or 24 V
• Part 2 1 Grid
• Part 3a 1 Standard control element
• Part 4 1 MultiControl control element
• Part 5 1 Dosing pump, 12 or 24 V
• Part 6 1 Stand for dosing pump EPDM
• Part 7 1 Wiring harness (heater) 9,500 mm
• Part 8 1 Wiring harness (metering pump) 7,000 mm
• Part 9 1 Seal
• Part 10 1 Exhaust silencer, leak-proof, 1,800 mm
• Part 11 1 hose clamp Ø 28 – 35
• Part 12 1 Side panel duct for air outlet
• Part 13 1 Fuel hose 12 V: 5,000 mm, 24 V: 8,000 mm
• Part 14 5 Fuel hose
• Part 15 1 Hose for combustion air inlet, 300 mm
• Part 16 1 Silencer for combustion air inlet
• Part 17 1 Tank standpipe
• Part 18 1 Fuel filter
• Part 19 1 Bracket for heater, stainless steel
• Part 20 1 Temperature sensor, external, 2.5 m
• Part 21 2 Vibration damper for fuel hose

1 bag (with mechanical components), consisting of:

• Part 22 10 Hose clamp (stainless steel) Ø 14
• Part 23 1 hose clamp Ø 16 – 27 (combustion air)
• Part 24 2 hose clamp Ø 26 – 28 (outlet)
• Part 25 1 pipe clamp (stainless steel) Ø 30
• Part 26 17 Cable ties
• Part 27 2 Angle bracket
