Webasto heater quiet compact 4.0 kW, marine air heater, low vibration and energy saving

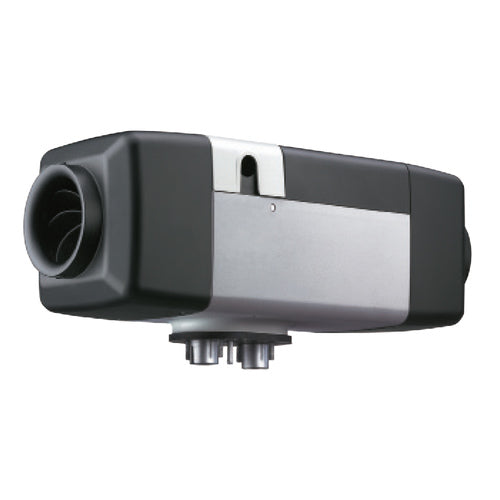

Webasto - Air Top Evo 40 – quiet and powerful

This particularly powerful, compact, and quiet heater is ideal for the most demanding requirements. It can be upgraded with the new multi-mode control panel, offering additional operating modes to suit your specific heating needs.

The advantages of the Air Top Evo 40:

• 4.0 kW heating output
• Very low power consumption thanks to new intelligent fan control
• New flame detection using exhaust gas temperature sensor
• Automatic cold start for quick heating
• Improved air intake silencer
• Vibration damper for fuel line
• Compatible with MultiControl control element
• Very quiet operation thanks to lower fan speed and quiet dosing pump (DP42)

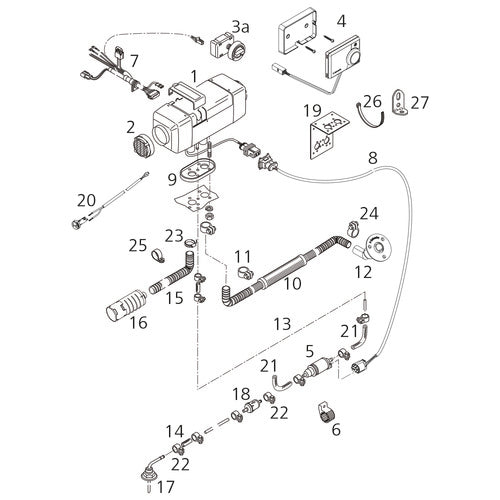

Scope of delivery

• 1 x heater 12 or 24 V
• 1 x grid
• 1 x standard control element
• not applicable
• 1 x dosing pump, 12 or 24 V
• 1 x stand for dosing pump EPDM
• 1 x wiring harness (heater) 9,500 mm
• 1 x wiring harness (dosing pump) 7,000 mm
• 1 x seal
• 1 x exhaust silencer, leak-proof, 1,800 mm
• 1 x hose clamp Ø 28 – 35
• 1 x side panel duct for air outlet
• 1 x Transparent fuel hose 12V: 5,000 mm, 24 V: 8,000 mm
• 5 x fuel hose
• 1 x hose for combustion air inlet, 300 mm
• 1 x silencer for combustion air inlet
• 1 x tank extractor
• 1 x fuel filter
• 1 x bracket for heater, stainless steel
• 1 x temperature sensor, external, 2.5 m
• 2 x vibration dampers for fuel hose

1x bag (with mechanical components) consisting of:

• 10 x hose clamp (stainless steel) Ø 14
• 1 x hose clamp Ø 16 – 27 (combustion air)
• 2 x hose clamp Ø 26 – 28 (outlet)
• 1 x pipe clamp (stainless steel) Ø 30
• 17 x cable ties
• 2 x angle bracket
