Vetus wastewater transport system quiet pump, bilge system 24V, compact design

Type wastewater transport system to the tank - SANI-PROCESSOR

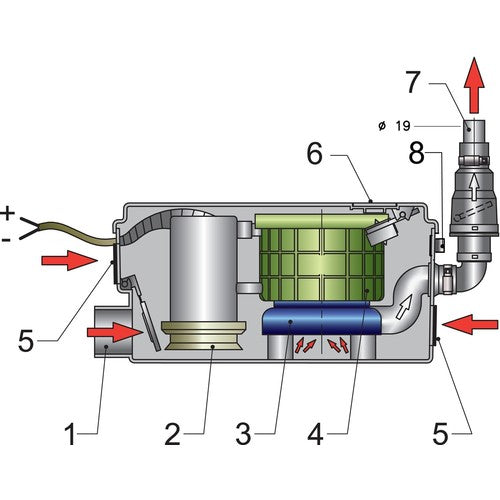

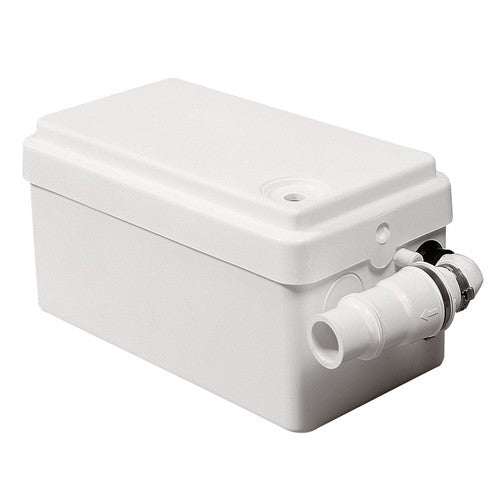

The VETUS Wastewater System (GWDS) allows wastewater to be pumped from the sink and/or shower tray into the wastewater tank. The system consists of a watertight housing with an extremely quiet pump, an automatic float switch, and a non-return valve in the drain line. The wastewater can be pumped either into the tank or directly overboard.

Specifications:

• Dimensions of waste water tank L 300 x W 165 x H 145 mm

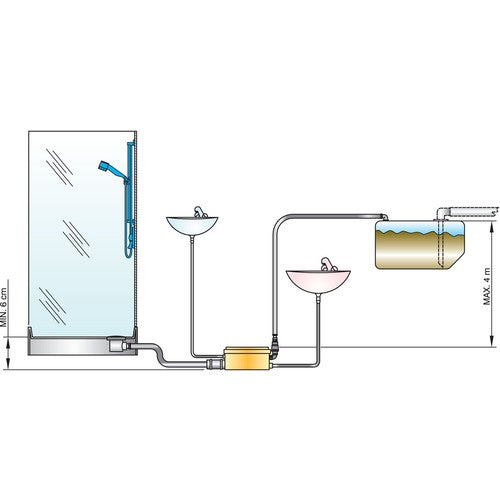

• Maximum installation height of the tank above the GWDS unit 4m or 20m away at the same height
• The bottom of the GWDS unit must be mounted at least 6cm below the sink/shower tray.
• Weight 3.5kg
• Pump capacity: 44L/min
• Power consumption approx. 340W (12V), 350W (24V), 600W (120V), 250W (230V)
• Available in 12 or 24 Volt DC, 230 Volt/50Hz or 120 Volt/60Hz versions
• Maximum permissible water temperature 35ºC

Connections:

• Waste water outlet to tank Ø 19 mm
• Drain from the shower or sink: Ø 32 or 40 mm
