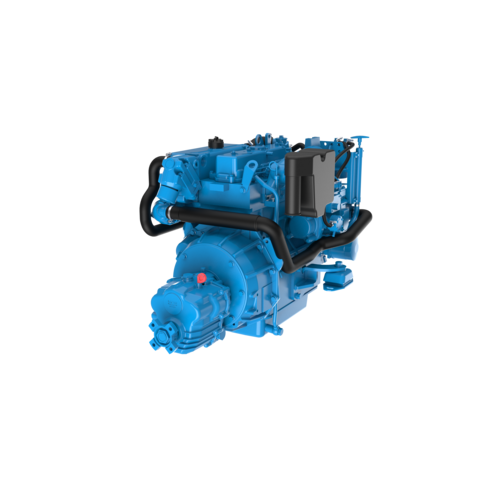

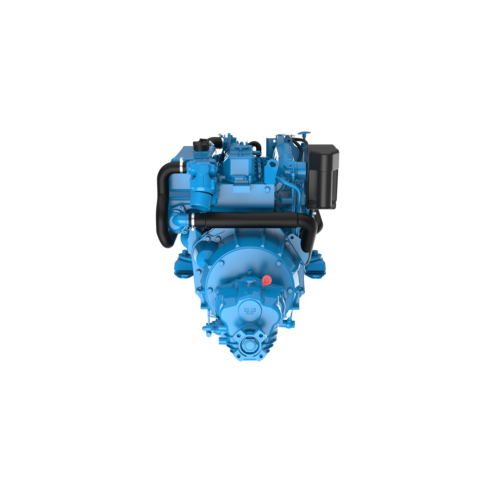

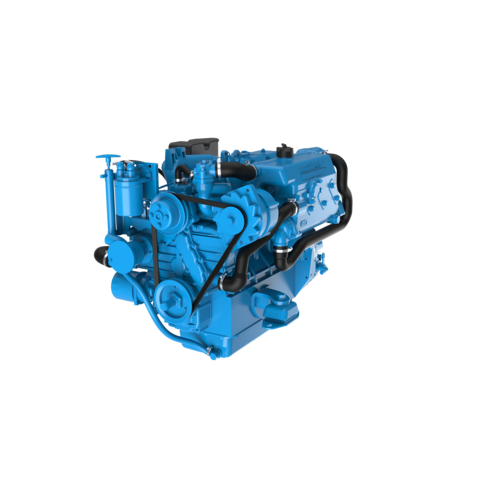

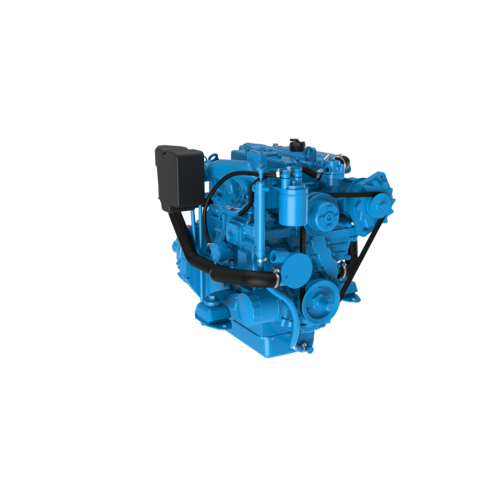

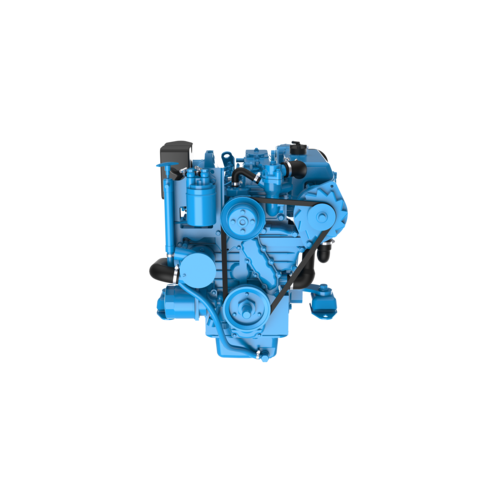

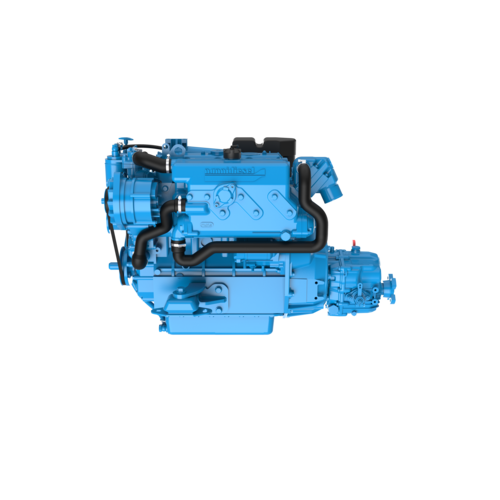

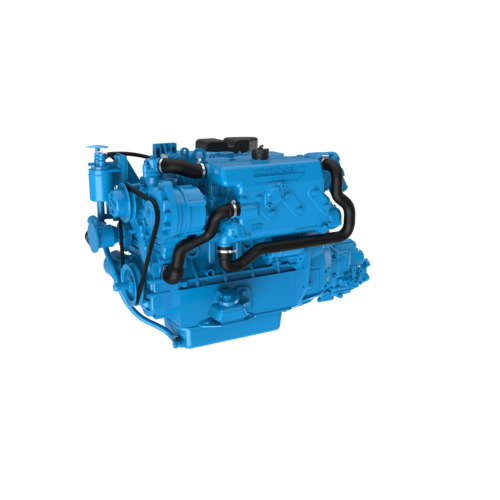

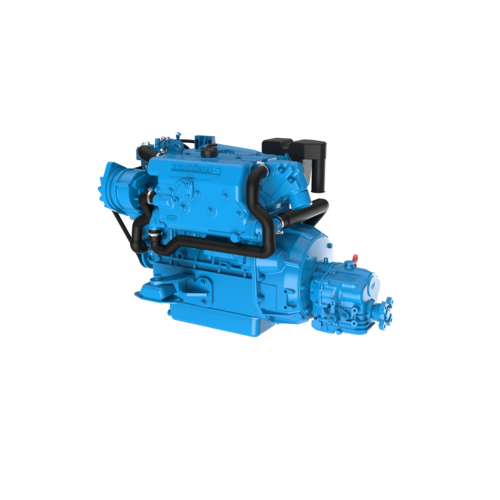

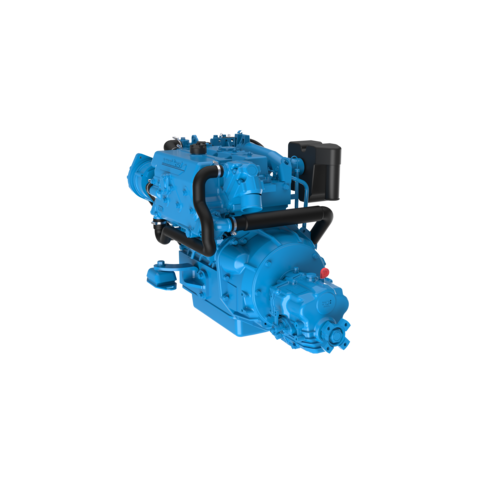

Nanni diesel engine 4-cylinder in-line engine gearbox TM345H, four-stroke diesel, closed cooling circuit with heat exchanger, sail drive, low emission

Construction

• 4-cylinder in-line
• Four-stroke diesel

Power supply system

• Mechanical indirect injection

shift

• 2.197 l [134 in³]

Drilling and stroke

• 83 x 92.4 mm [3.27 x 3.64 inches]

Permit

• Atmospheric

cooling

• Closed cooling circuit with heat exchanger

transmission

• Wave line, sail drive

emission

• RCD2 2013/53/EU, EPA Marine Tier 3, BSO 2

maximum length

• 763 mm [30 inches]

Length at the reverser

• 719 mm [28.3 inches]

Width

• 544 mm [21.4 inches]

Height

• 623 mm [24.5 inches]

dry weight

• 216 kg [476.2 lbs]
