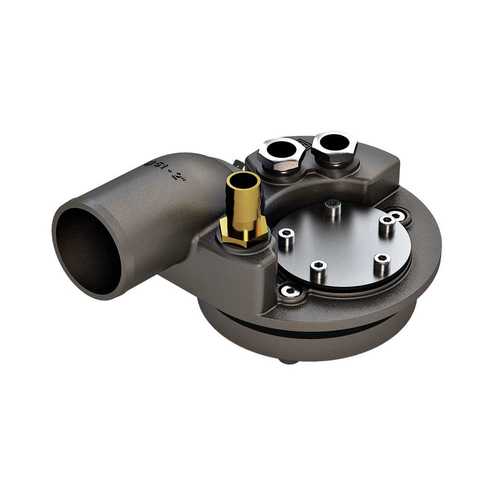

Vetus fuel connection kit, anodized aluminum cap 38mm-10mm, fuel tank kit, easy installation

Type FTL - CONNECTION FOR FUEL TANKS

Saves considerable installation time

This connection kit features an anodized, saltwater-resistant aluminum cap with a counter flange and a rubber gasket, which are easily tightened with just three screws that compress the rubber gasket (ensuring a perfect seal). The kit includes all the necessary connections; only a single 114 mm diameter hole needs to be cut at the top of the fuel tank. This connection kit is also suitable for plastic, metal, or fiberglass diesel or gasoline tanks.

The following connectors are included:

• Filling hose Ø 38 and 16 mm tank ventilation hose
• Fuel intake pipe Ø 10 mm
• max. container depth 850 mm
• Fuel return for hose Ø 10 mm
• Mounting flange for tank sensor (connection for sensors with 5-hole SAE flange)
• Terminal block 6.3 mm for earth wire
• 2 fastening tabs for fixing the container
