Vetus wastewater control panel, level monitoring, wastewater system panel, automation against dry running and overflow

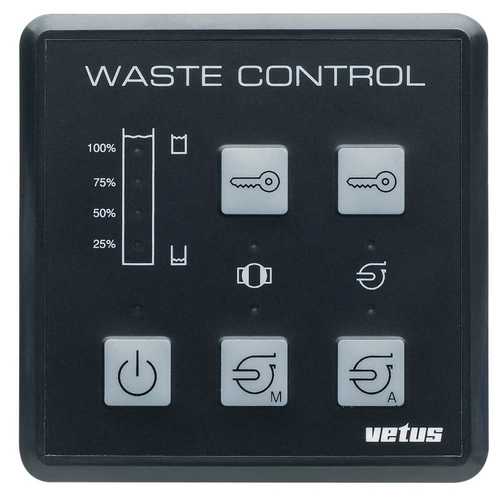

Type WWCP, waste water control panel - ACCESSORIES

Comprehensive level monitoring

Overview of the entire wastewater system, both automatically and manually if required. The WWCP panel is connected to the VETUS tank sensor (type WSENSORA or SENSORA) and provides information on the fill level in the tank via LED displays. The measuring technology ignores fill level peaks, such as those that can occur due to heeling of the boat, and provides a realistic impression. In combination with an automatic shut-off valve that opens when the tank is full and closes when emptied, this prevents the pump from running dry. A connection between the panel and a relay in the power supply of the toilet(s) prevents further flushes when the tank is full, thus protecting the tank from overflow.

specification

• Dimensions 85x85 mm
• Installation depth 40 mm
• Suitable for 12 or 24 volts
• Current consumption in standby mode 4mA, electric pump 10A max. remote-controlled shut-off valve 5A max. and alarm signal 1A max.
• Shut-off valve and tank sensor must be ordered separately
