Vetus water lock plastic, 2-phase exhaust tank, sound insulation rotatable

Type NLP - 2 PHASE WATER COLLECTOR

Great sound insulation, low exhaust back pressure

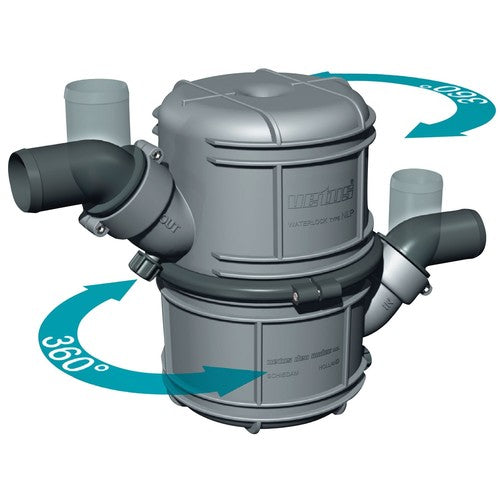

The NLP waterlock operates in two phases. The lock consists of two chambers, an upper and a lower one, separated by a partition plate and a riser pipe in the middle. Since the upper section, like the inlet and outlet connections, can be rotated 360°, installation is straightforward, even in confined spaces. To further reduce exhaust noise, a VETUS muffler/swan neck can be installed behind the lock.

Specifications

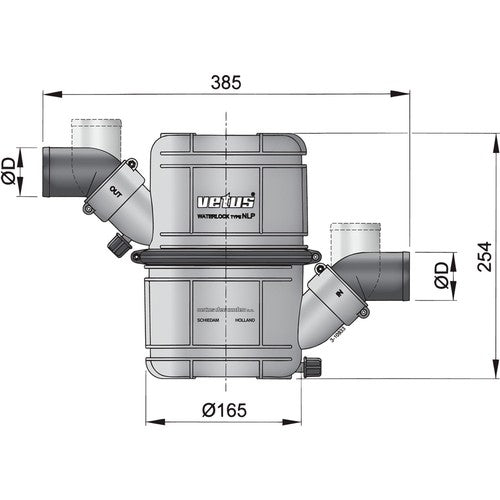

• Type NLP40/45/50 for exhaust hose with inner diameter of Ø 40, 45 or 51 mm with a capacity of 4.5 liters
• Type NLP60/75/90/50S for exhaust hose with an inner diameter of Ø 51, 60, 76 or 90 mm with a capacity of 10 liters
• Two mounting clamps included
