Vetus control panel 12/24V for bow thrusters, control panel, waterproof with safety functions

Type BP - CONTROL PANELS FOR ELECTIC BOW AND STERN THRUSTERS

Quick and easy installation

These new bow thruster control panels are available as either a complete or compact version. Both models fit into a standard 52mm diameter panel cutout. The panels come standard with an output switch (max. 3 A) for controlling other devices and are waterproof.

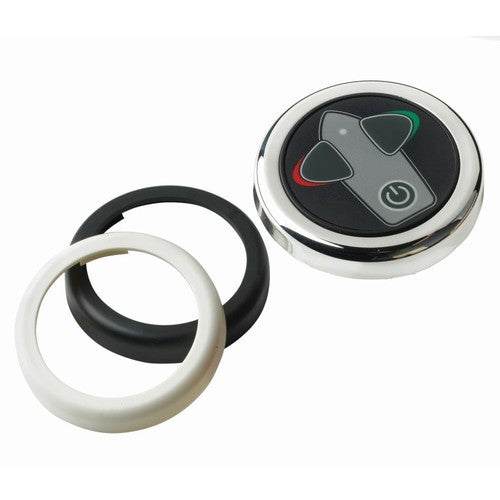

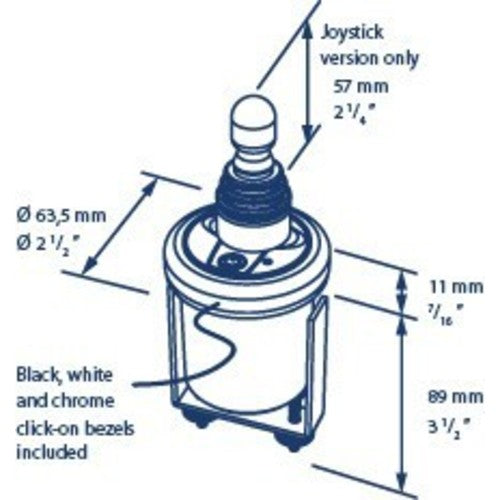

Round bow thruster panel type BPSR and BPJR:

• Front ring Ø 63 mm
• Installation depth 90 mm
• Hole size Ø 52 mm
• Retrofittable with other VETUS bow thruster panels and on-board instruments.

Unique features:

• Time delay during thrust reversal
• Automatic shutdown after 30 minutes of inactivity
• Automatic shutdown after continuous operation for more than 2 minutes, reset after 5 seconds
• Parental controls
