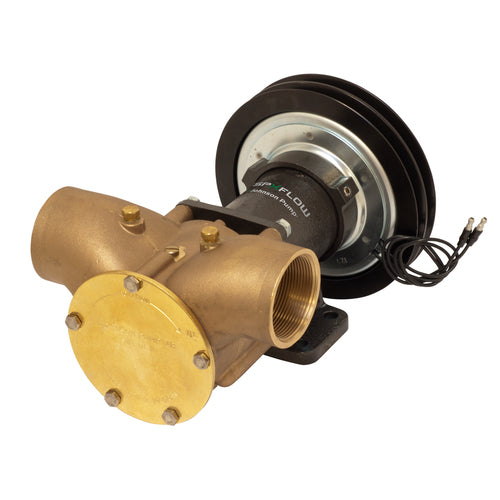

Johnson Impeller Pump Electromagnetic Clutch Stainless Steel Shaft Bronze Housing, Bilge Pump, Automatically Controlled for Heavy Duty

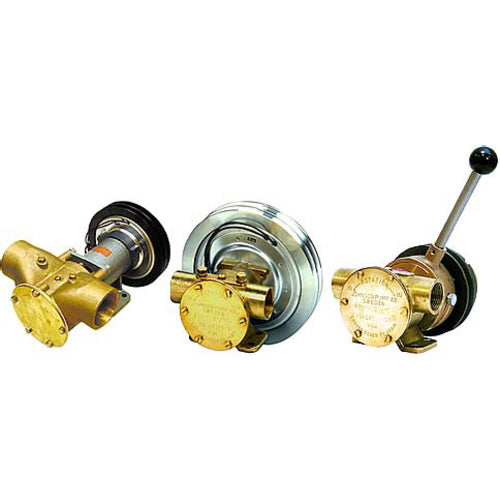

Johnson pumps with electromagnetic clutch for heavy-duty use

With a pump with an electromagnetic clutch, you have the power you need at the touch of a button, without having to be at the pump. When combined with a vacuum switch (recommended for use as a bilge pump), the clutch automatically disengages as soon as the pump draws in air, preventing dry running and damage to the pump. Automatically controlled pumps are available in sizes from 1" to 2 1/2" (20 l/min to 625 l/min). The clutch is 12 V or 24 V. Wearing parts can be easily replaced, and service kits are available for all standard models. The vacuum switch is available as an accessory; see page 45. The clutch must be ordered separately.

Technical data:

• Pump housing: Bronze connection for vacuum switch
• Shaft: Stainless steel shaft with permanently lubricated double ball bearings
• Seal: Mechanical seal
• Cam: full or partial comb
• Connection: 2' BSP
• Clutch: Electromagnetic 12/24 V DC
• Pulley: 2xA or 1xB groove
• Pulley Ø: 178 mm / 7”
• Impeller: 09-802B (09-814B*)
• Weight: 13.2 kg - 27 lbs

Dimensions

• Length: 290 mm - 11.4'
• Height: 192 mm - 7.56'
• Width: 157 mm - 6.18'

*Pump with nitrile impeller available on request
