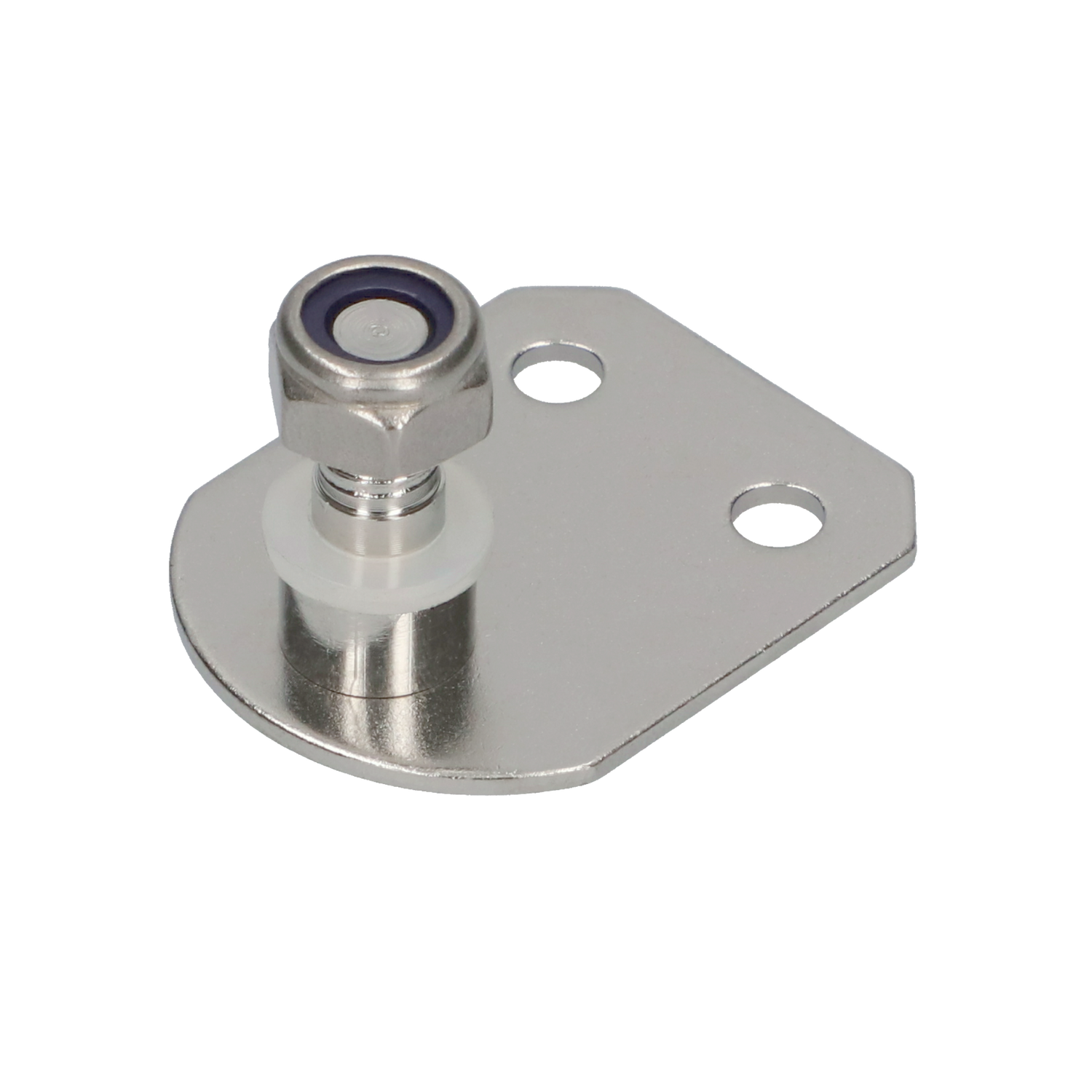

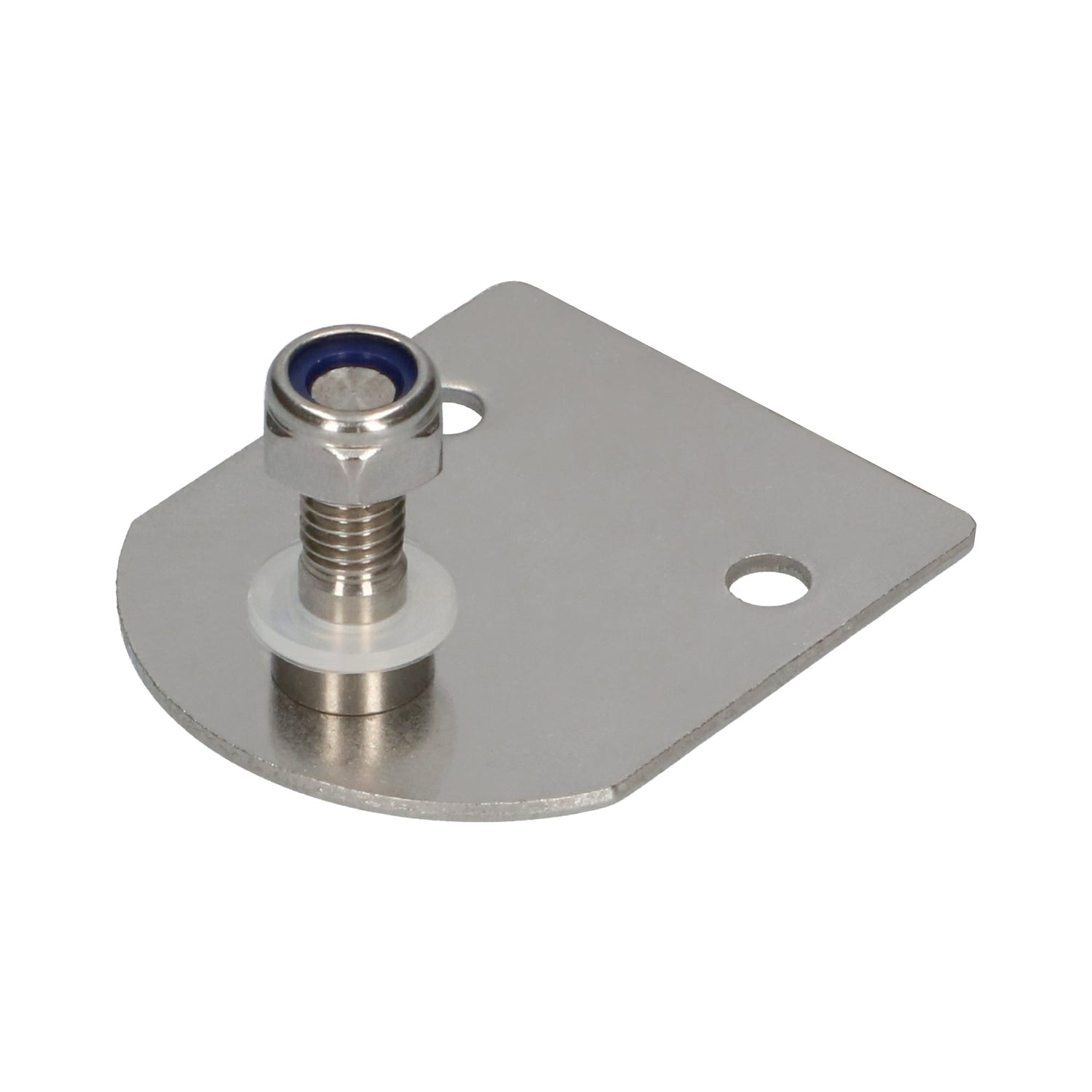

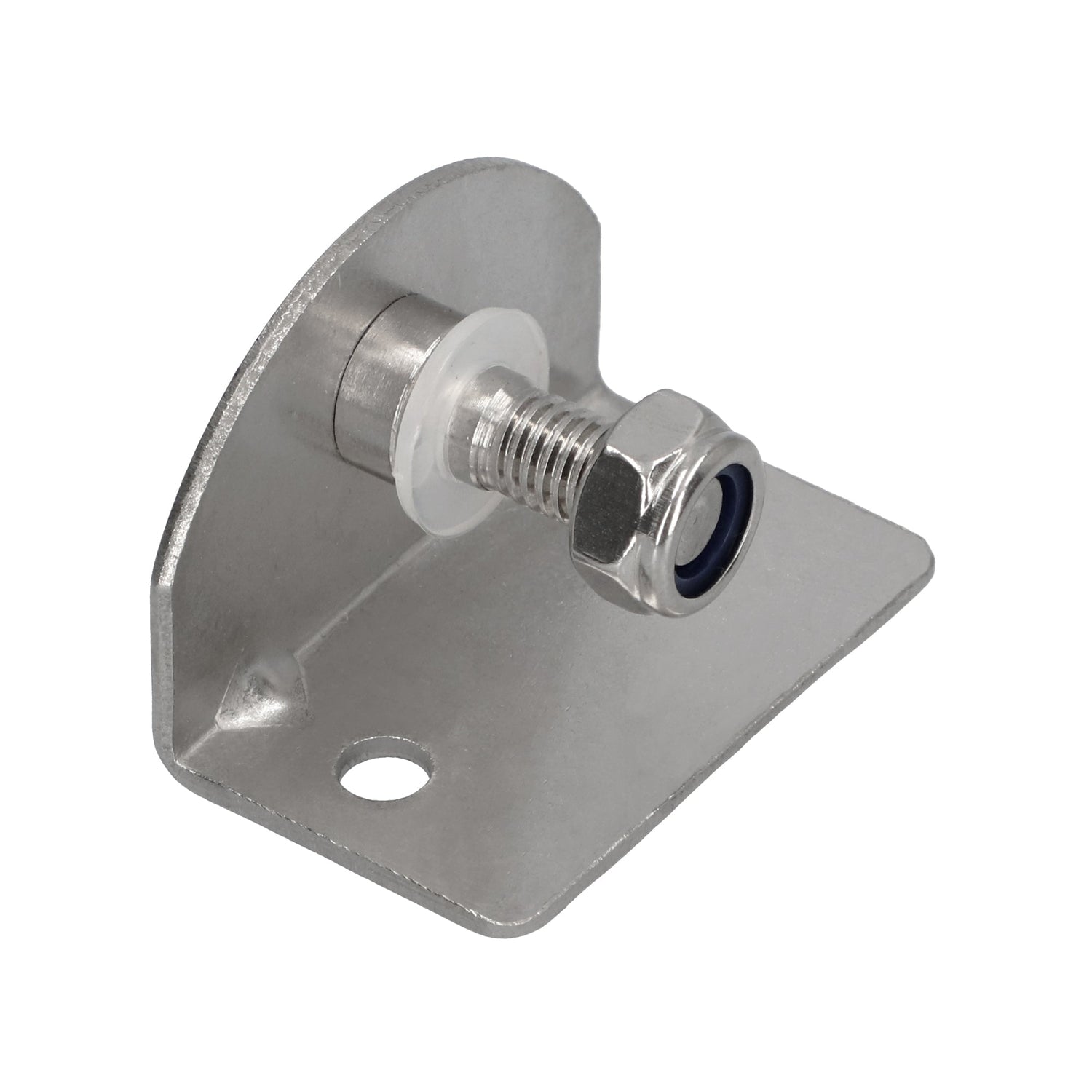

Befestigungsplatte für Gasdruckfeder mit Augenaufnahme - 48 x 55 mm

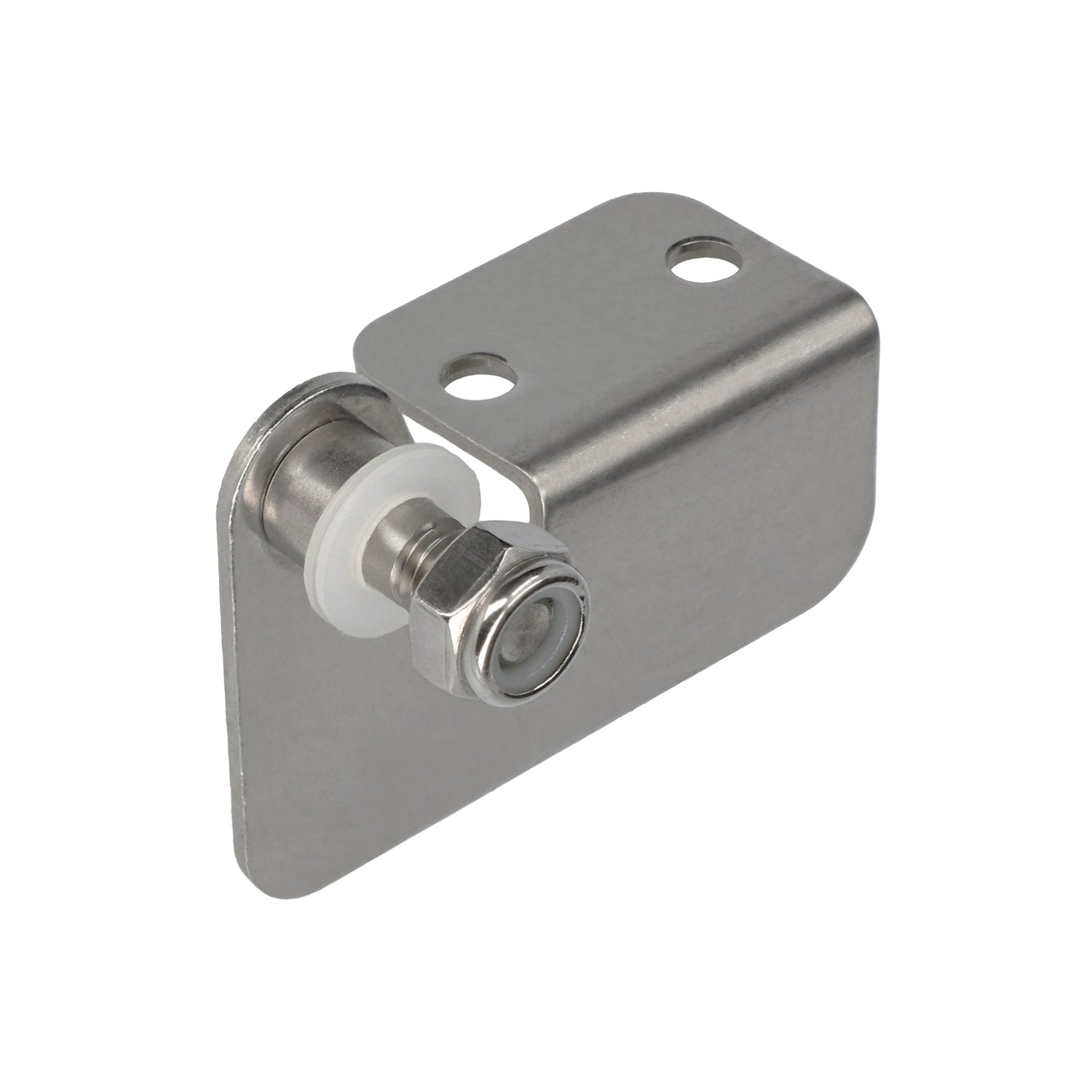

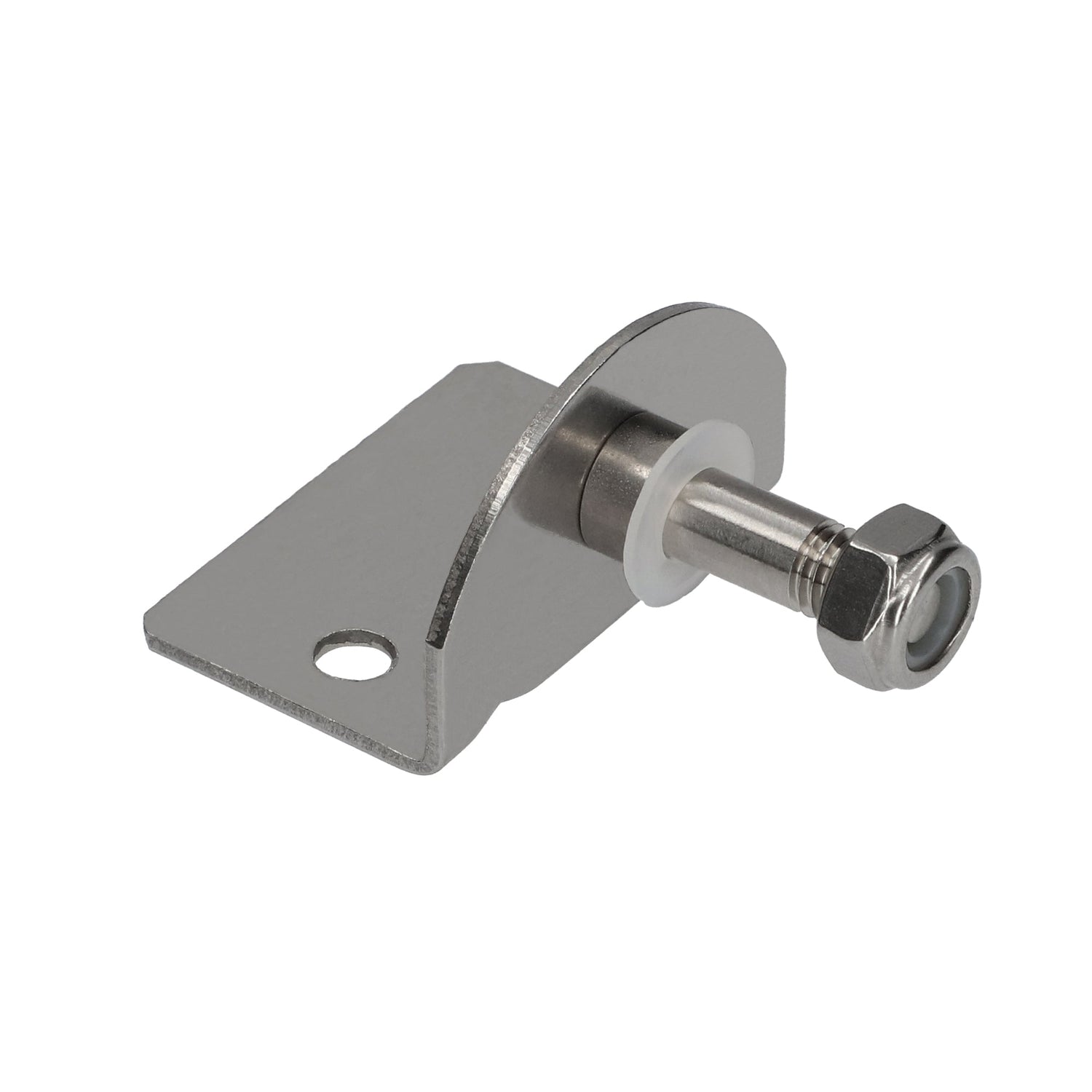

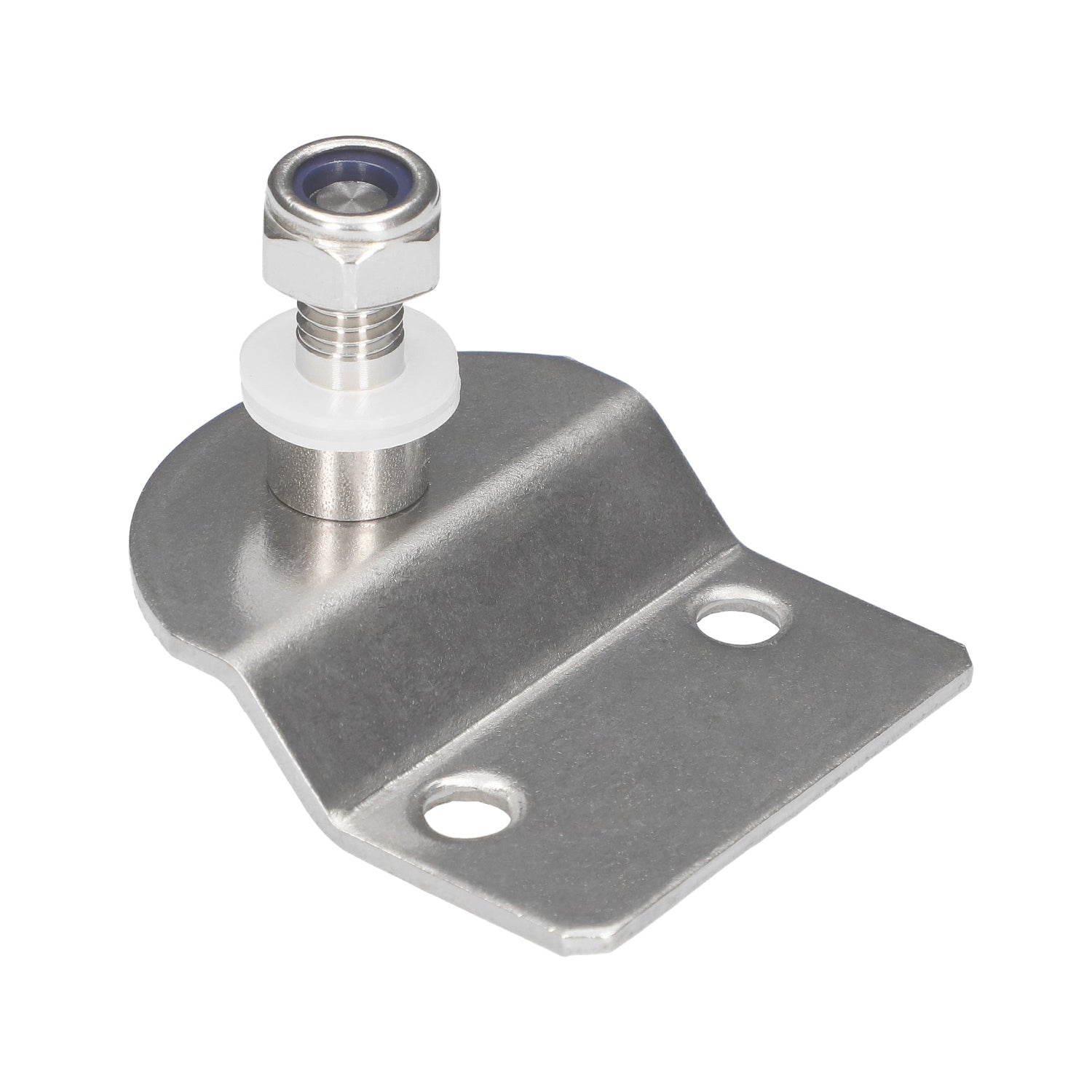

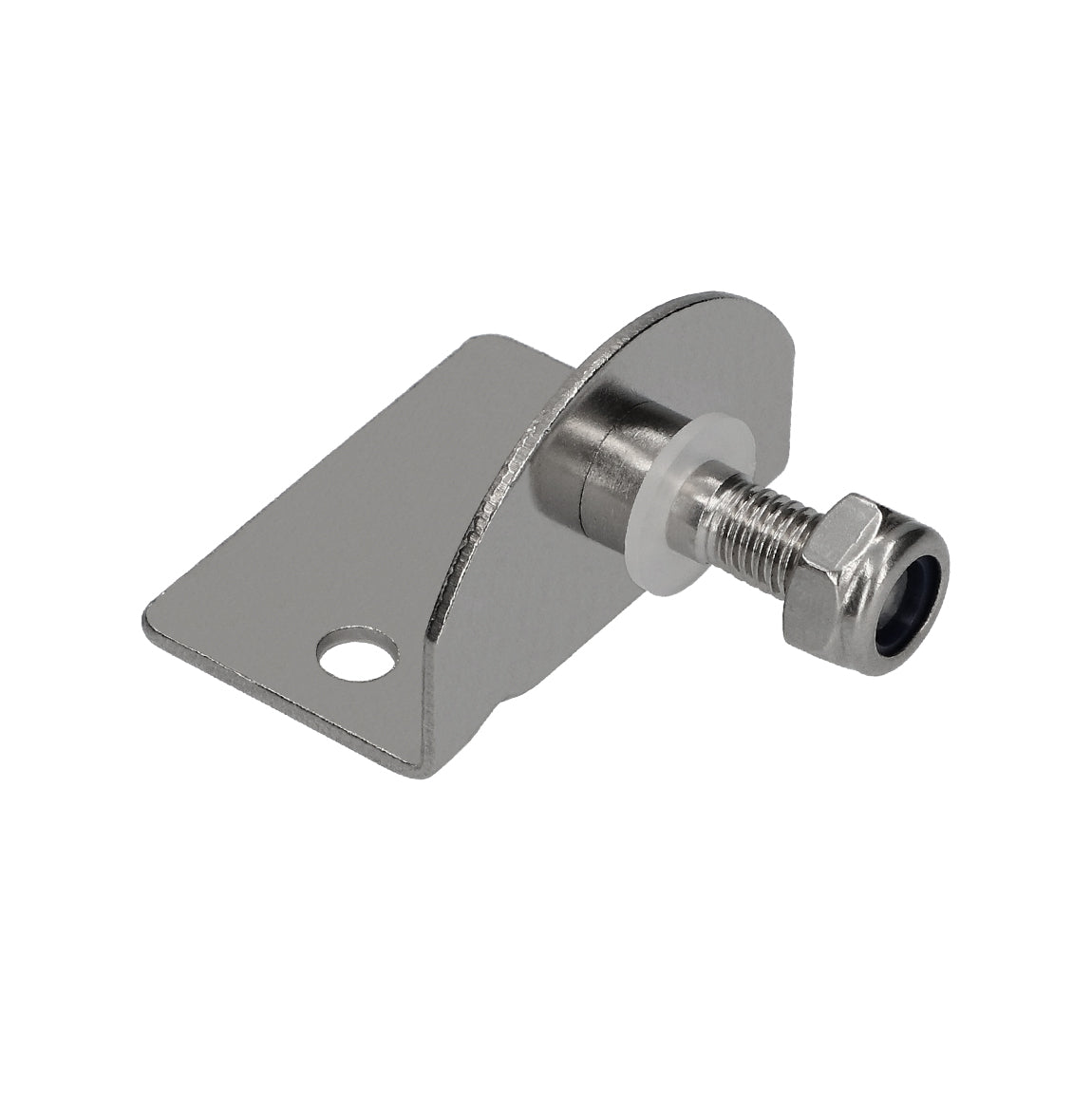

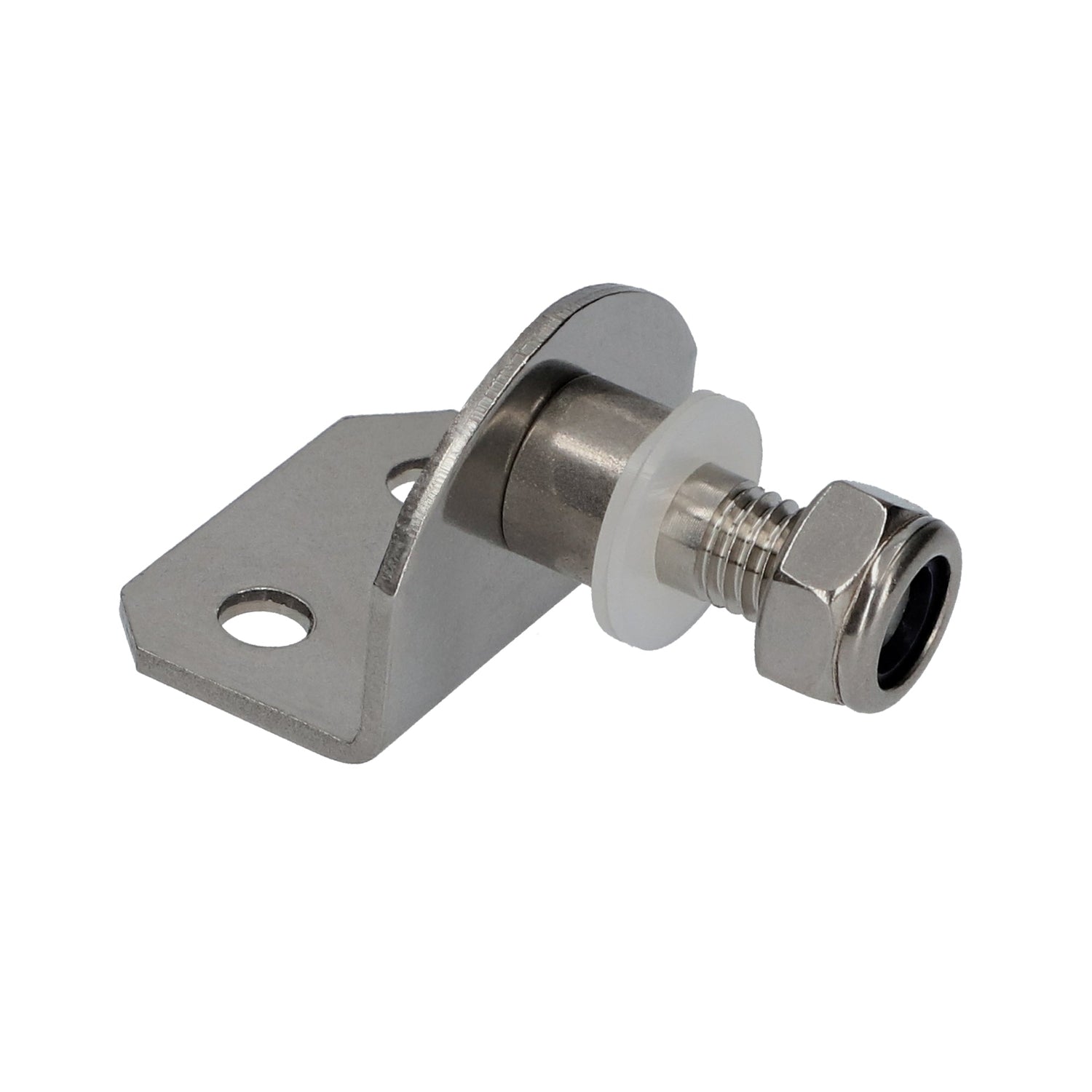

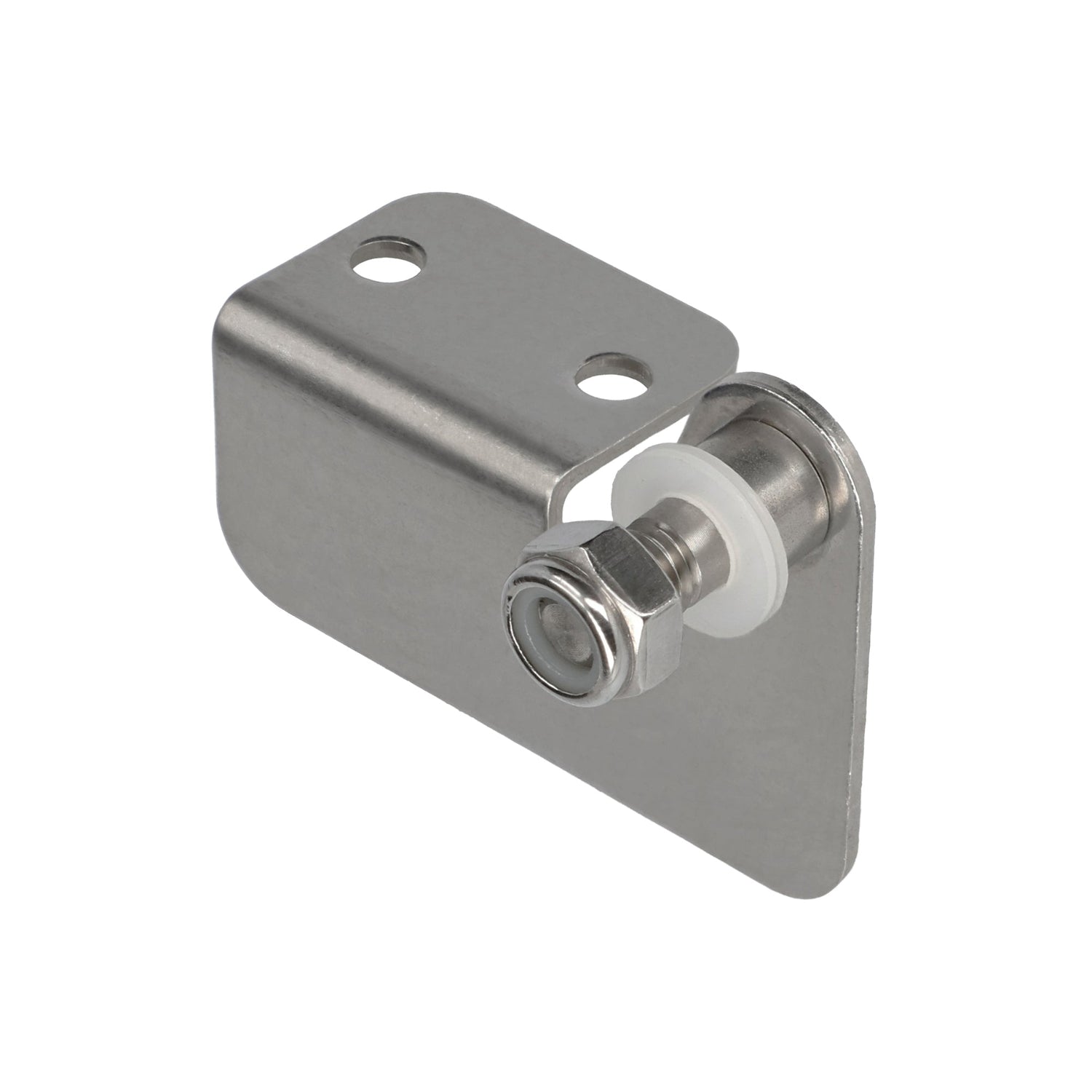

Secuplan mounting plate with bolts for gas springs with eyelet

• Material: stainless steel V4A (AISI 316)
• Material thickness: 2 mm
• Bolt diameter: 8 mm
• Bolt length: 25 mm (fitting 48 x 32 x 30 mm → 28 mm), thread M8 x 12 mm
• Hole diameter for fastening screws: approx. 6 mm (except fittings 35 x 44 mm and 35 x 23 x 25 mm -> approx. 5 mm)
• Dimensions given refer to L x W x H, measured without bolts
