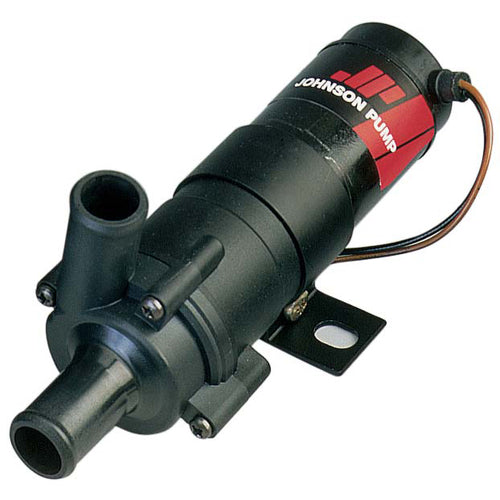

Johnson centrifugal pump 12V magnetic motor 20mm water glycol pump continuous operation IP67

Johnson CM30

Technical data:

• Pump housing: PPA - plastic
• Impeller: PPA - plastic
• Shaft: stainless steel
• Motor: 12/24V DC Protected according to IP67
• Permanent magnet, ball bearing motor, designed for continuous operation
• Fluids: Water/glycol mixture, max. 60% glycol, pure fresh water
• Liquid temperature: Min -40 °C Max +100 °C
• System pressure: 2.5 bar Max
• Hose connection: Ø 16 mm (?') or Ø 20 mm (¾')
• Dry run: Max. 30 minutes
• Power consumption: Max 14W (CM10) 27W (CM30)
• Mounting: Universal holder, flat mounting

Dimensions

• Length 177 mm – 6.97'
• Width 68 mm – 2.68'
• Height 85 mm – 3.35'
• Weight 0.6 kg – 1.3 lbs

Please observe the safety instructions for operation and installation of the product.
