Johnson diaphragm pump self-priming 12V, waste water pump, robust nitrile rubber diaphragm

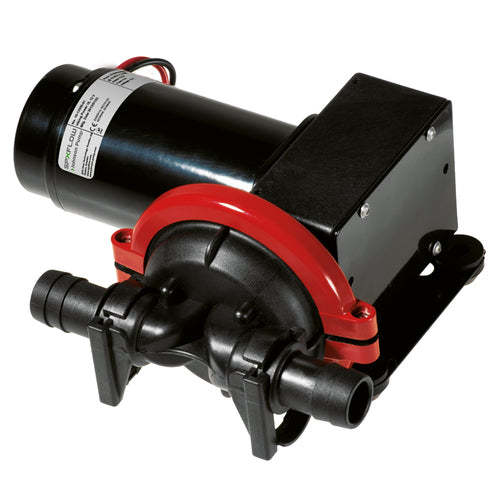

Johnson Viking Power 16

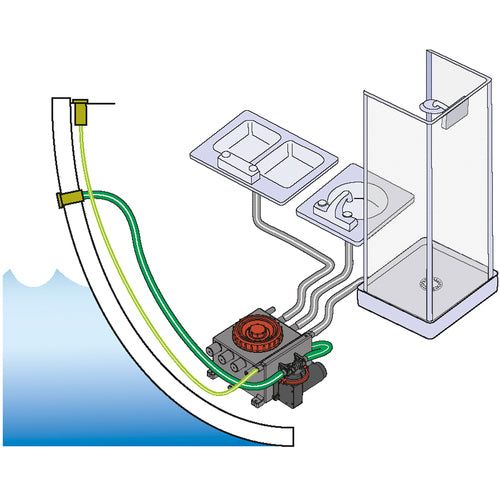

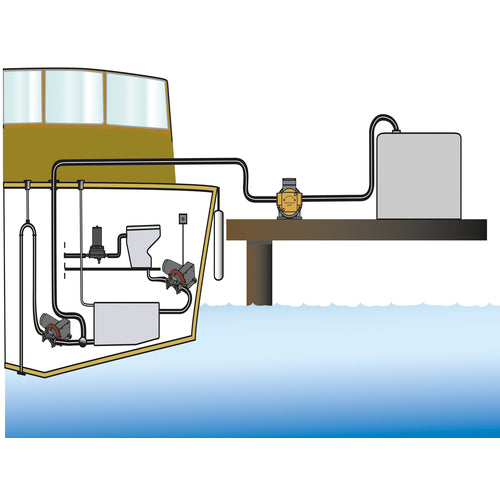

A state-of-the-art, self-priming, single-chamber diaphragm pump that can be installed in various pump-motor configurations. It can be installed anywhere behind the drain in a sewage system or as a bilge pump in a recreational boat. Its relief valves mean no in-line filters are required, and the pump can not only run dry but also easily handle a mixture of air and water.

The Viking Power 16 is self-priming up to a height of 3 m. With its low impulse and dampening rubber bracket, the pump operates quietly. Specifically designed for pumping wastewater, the Viking Power 16 is built to last and is easy to maintain. When it's time to replace the premium reinforced nitrile rubber diaphragm, you can install a replacement diaphragm without removing the pump from the system.

Supplied with 1' and ¾' hoses ½' BSP KlickTite XL connectors.

Technical data:

• Motor: 2.3 amp (12V), 1.2 amp (24V) at 0.1 bar
• 12/24V DC
• Housing: Nylon, glass fiber reinforced
• Valves: Nitrile rubber
• Diaphragm: Reinforced nitrile rubber

Dimensions

• Length 186 mm – 7.3'
• Width 227/181 mm – 8.9'/7.1'
• Height 117/204 mm – 4.6/8'
• Weight 2.6 kg – 5.7 lbs
