Johnson Viking hand-operated bilge pump compact D38/D25, diaphragm pump, 360° rotatable connections

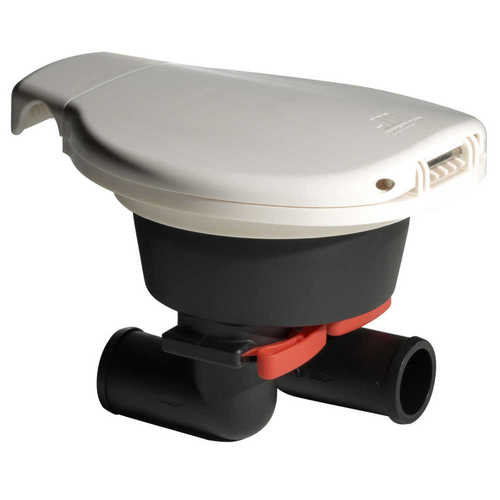

Johnson Viking Compact

Hand-operated bilge pump with full capacity, ideal for installation in tight spaces.

This robust yet elegantly designed, single-chamber diaphragm pump offers first-class performance and is quick to install. The pump can be attached to the bulkhead in minutes using four screws and is equipped with a robust gasket, making the unit self-sealing. With the pump body recessed into the bulkhead, only the handle is visible in the cabin or cockpit.

The Viking Compact's inlets and outlets can be rotated 360° and are supplied with each pump in two sizes: 25mm (1") and 38mm (1½"). Of course, the Viking Compact features KlickTite connectors that allow for installation with just one click!

Technical data:

• Housing: Polypropylene
• Lid: ABS
• Diaphragm: Nitrile rubber
• Valves: Nitrile rubber (1 leaf and 1 tricuspid valve)
• Humidified parts: Polypropylene, PA66GF30 plastic and nitrile rubber
• Max. suction height: 2.1 meters (7 feet)
• Max. discharge head: 1.2 meters (4 feet)
• Max. combined suction and discharge head: 3.3 meters (10.8 feet)
• Connection: KlickTite connectors for 1' (25 mm) or 1½' (38 mm) hose. Both options included.
• Max. liquid temperature: +60 °C (140 °F)
• Weight: 0.675 kg (1.5 lbs)

Flow at 10 kPa pressure and 45 beats/min.:

• Ø25mm connection 34.5 l/min (9.1 US gallons/min)
• Ø38mm connection 45 l/min (11.9 US gallons/min)
