Johnson circulation pump PA66 thermoplastic stainless steel 12V, water pump, IP31 protection class for continuous operation

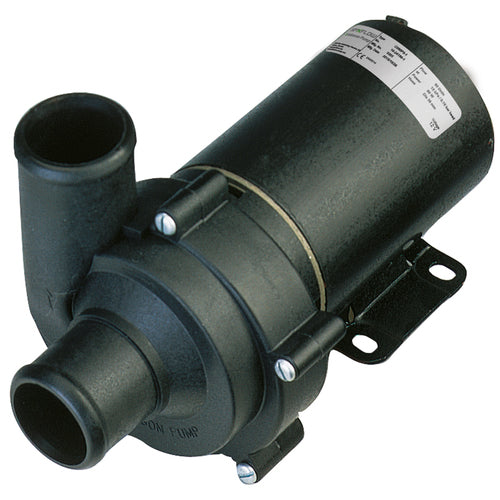

Johnson CO90

Technical data:

• Pump housing: PA66, thermoplastic
• Impeller: PA66, thermoplastic
• Shaft: stainless steel
• Shaft seal: Mechanical seal
• Motor: 12/24 V DC Protected according to IP31
• Permanent magnet, ball bearing motor, designed for continuous operation
• Liquids: Water/glycol mixture, max. 60% glycol, pure fresh water
• Liquid temperature: Min -30 °C Max +100 °C
• System pressure: Max. 2.0 bar
• Hose connection: Ø 38 mm (1½')
• Dry running: No
• Power consumption: 100W
• Mounting: Universal holder, flat mounting
• Length: 211 mm - 8.3'
• Width: 117 mm - 4.6'
• Height: 110 mm - 4.56' from base plate (total 116 mm)
• Weight: 1.75 kg - 3.8 lbs
